ART Midrange 3D
360 degree fast-scan C-UAS & airspace awareness radar
ART Midrange 3D is part of the fourth generation of ART award-winning high-resolution C-UAS and airspace awareness radar family. This high-performance sensor is specifically tailored to address the requirements of the Security & Defense market and Air Traffic Regulation institutions in key applications: counter small unmanned aerial vehicle systems (C-UAS), unmanned aircraft traffic management (UTM) and avian wildlife management solutions. Featuring a 3D multi-beam antenna system and cutting-edge high-power amplifier, the radar detects, tracks and classifies micro quadcopters and micro fixed-wing UAS with extended elevation coverage.
ART Midrange 3D can be complemented with electro-optical platforms, soft kill/hard kill countermeasure devices and ART HMI Multi-sensor Command and Control Software, to obtain an industry leading integrated solution. The combination of these elements provides complete situational awareness in complex real-life environments.
Coverage
Complete 360º and wide elevation coverage with a single unit.
Update Rate
Fast 1 Hz scan rate in all operational modes providing early target confirmation.
Detection Performance
State-of-the-art detection range for micro and small UAVs. Detectable target RCS below 0,01 m².
Technology
Multi-beam antenna that provides a direct measurement of the target altitude.
Highlights
Build a cost-effective early warning C-UAS solution
Leverage ART Midrange 3D to create a cost-effective C-UAS solution. Achieve complete 360° azimuth surveillance and wide elevation detection & tracking with a single radar unit, ensuring optimal performance at the best value. Its design minimizes radar clutter and ensures consistent performance over a broad range of scenarios, allowing operators to reliably detect even micro-UAS threats in complex real-world environments.
Integration-ready for comprehensive security

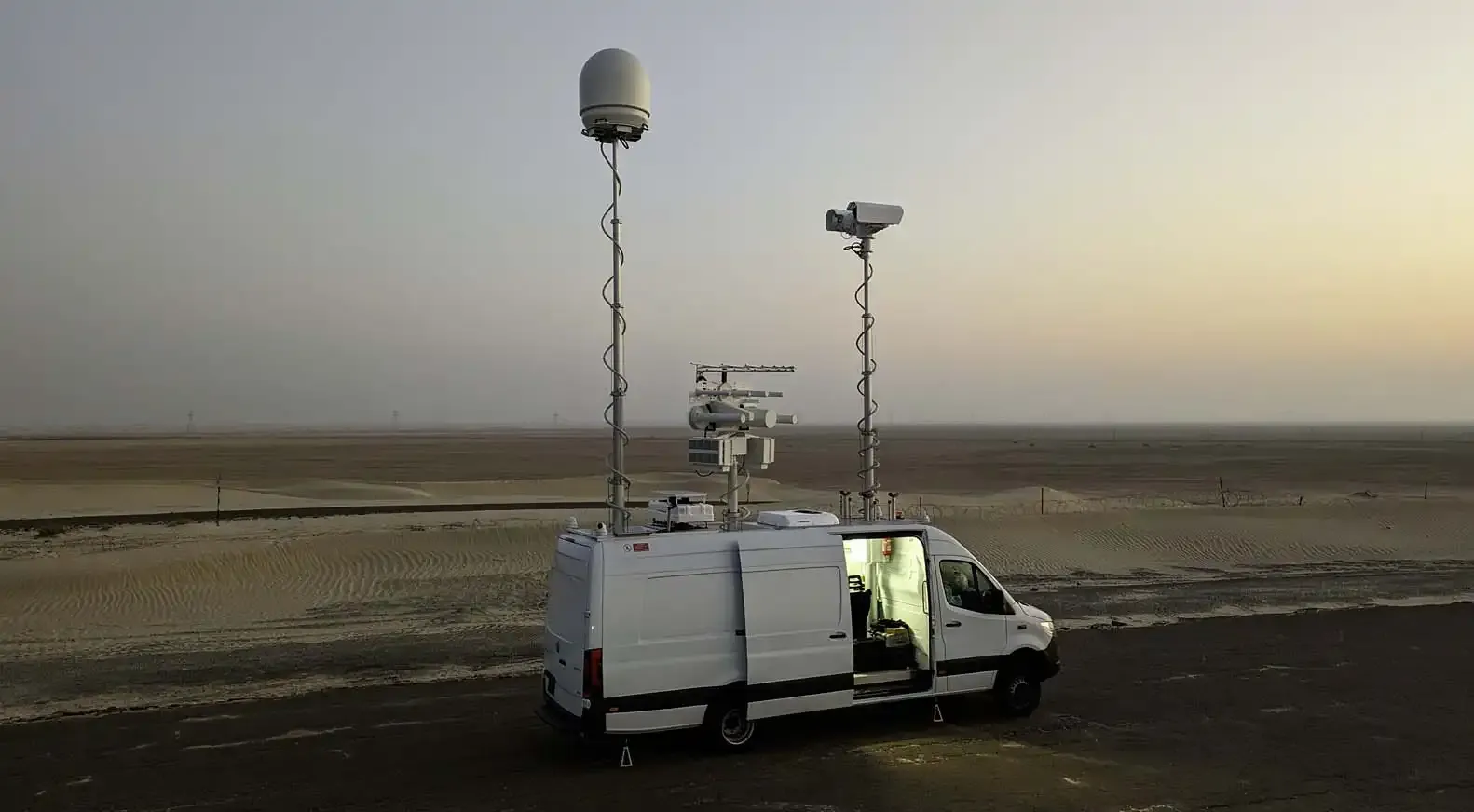

ART Midrange 3D seamlessly integrates with electro-optical platforms and both soft and hard kill countermeasures using standard protocols like SAPIENT and ASTERIX. This ensures interoperability within multi-sensor solutions, enhancing critical infrastructure protection and adapting to evolving C-UAS missions.
Leverage a decade of proven expertise
Backed by more than a decade of proven expertise, ART Midrange 3D benefits from a globally deployed family of radar systems, sharing robust subsystems and extensively field-proven components.
Applications
ART Midrange 3D
| Waveform | Wideband coherent Doppler CWLFM Low Probability of Interception (LPI) |
| Frequency band | Ku Band |
| Transmitter type | Solid State |
| RF transmission masking | Configurable RF transmission azimuth sectors |
| Processing | Multi-beam processing for 3D target detection Coherent integration - Doppler processing Adaptive clutter map Track-before-declare Built-in multi target tracker |
| Scan speed | 60 RPM |
| Instrumental detection range | 10, 7 or 5 km |
Technologies

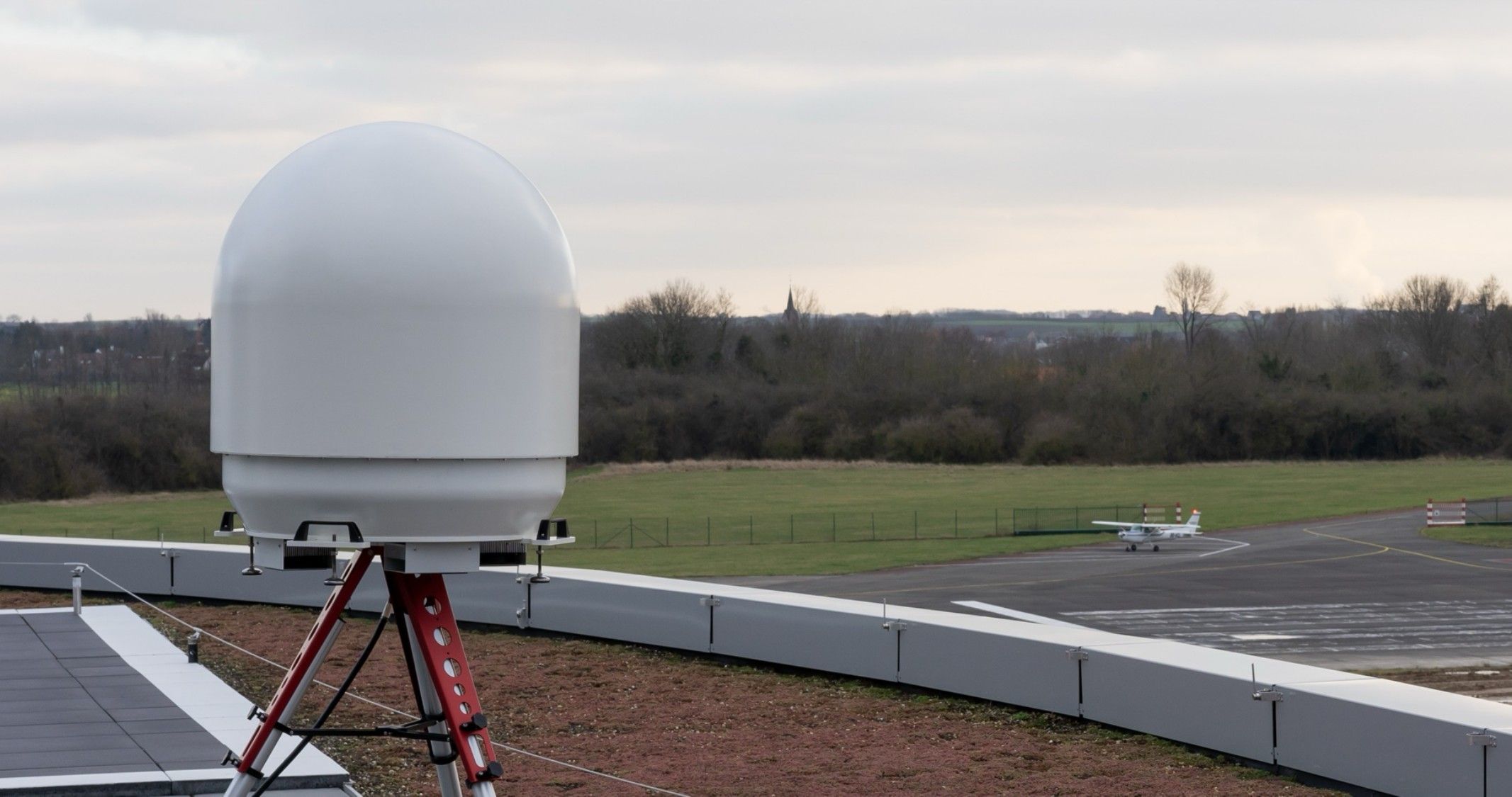

Compact single unit with 360° coverage and fast scan rate
Direct measurement of target altitude
Small target detection better than 0.01 m² RCS
Low operation workload, automatic adaptation to the environment
High range accuracy and resolution
Target classification
SAPIENT C-UAS standard & ASTERIX compliant
ART R&D Team has a broad scope of research and engineering background that results in an extensive range of cutting edge capabilities.
